BOOKHAM SCOUTING CENTRE

Progress photographs - Week 8 (w/c 4th August 2008)


Home

News

Appeal

Existing HQ

The site

Plans

Images

Contact

Donate

Links

Progress photos

Sponsors

Project team



Select the week to view and click on the images to see a larger version...

StoresWeek 1Week 2Week 3Week 4Week 5
Week 6Week 7Week 8Week 9Week 10Week 11
Week 12Week 13Week 14Week 15Week 16Week 17
Week 18Week 19Week 20Week 21Week 22Week 23
Week 24Week 25Week 26Week 27Week 28Week 29
Week 30Week 31Week 32Week 33Week 34Week 35 plus



4th August 2008

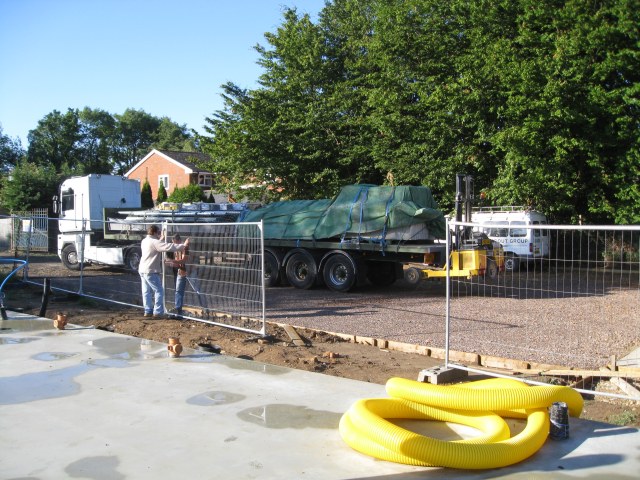

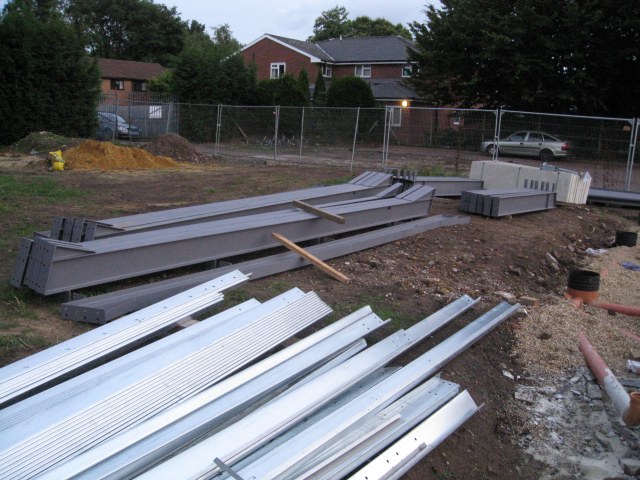

A large articulated lorry has arrived with the first delivery of materials for the Leofric building.

4th August 2008
These are the steel rafters which will support the roof.

4th August 2008

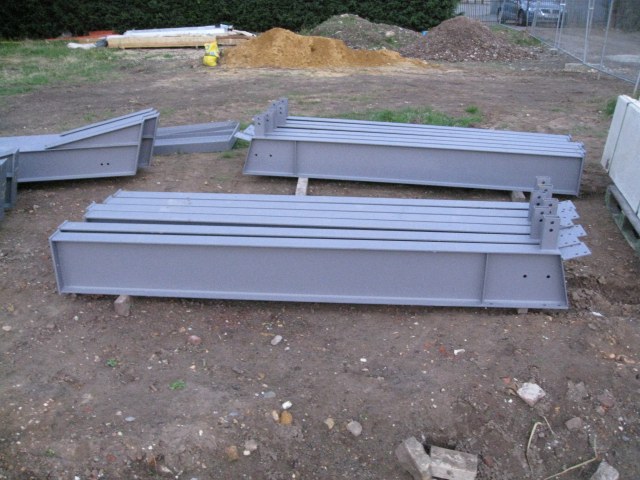

The rafters are supported on these columns, six down each side of the building.

4th August 2008

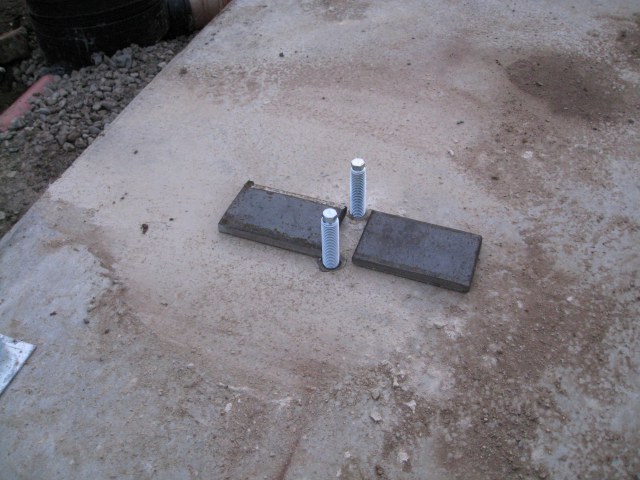

"Holding down" bolts have been installed around the edge of the slab. The columns will be secured by these bolts.

4th August 2008

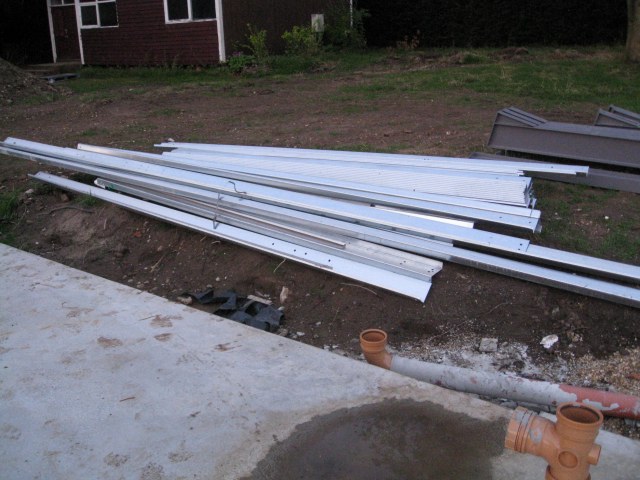

This is a heap of "purlins", which span between the rafters to support the roof panels.

4th August 2008

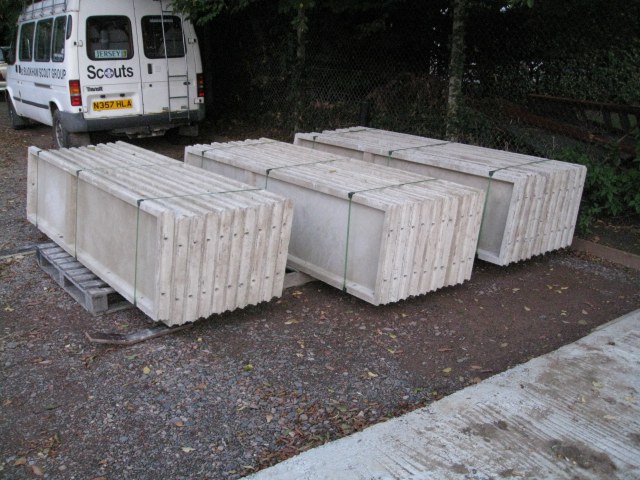

These are the concrete panels which form the external walls.

5th August 2008

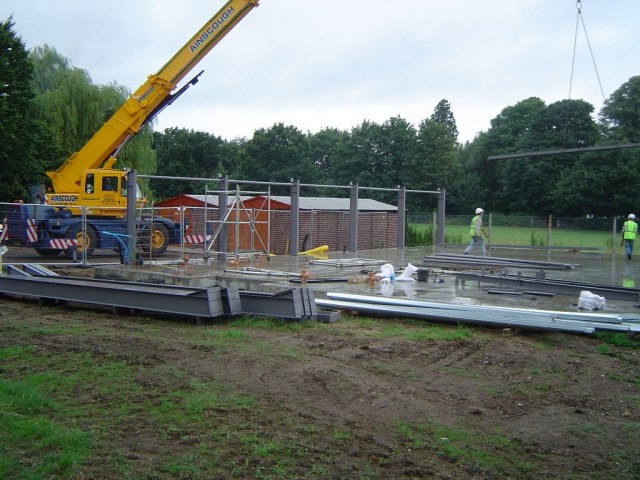

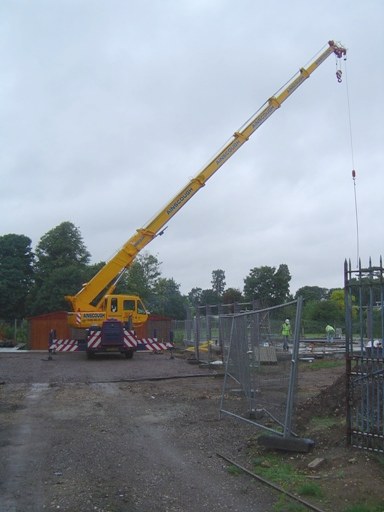

A crane has arrived to lift the steel members into place.

5th August 2008

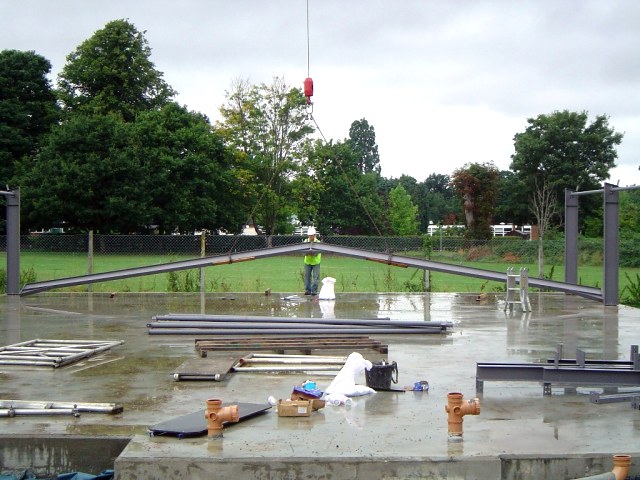

A rafter is lifted into position.

5th August 2008
Bolts are tightened up before lifting to the final position.

5th August 2008

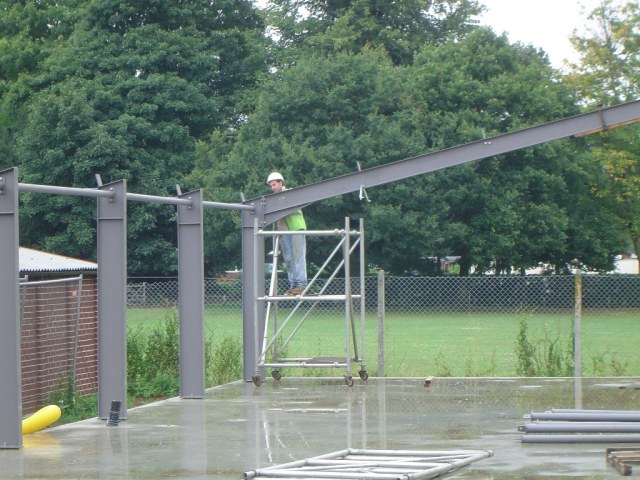

Finally the connections at each end are made.

5th August 2008

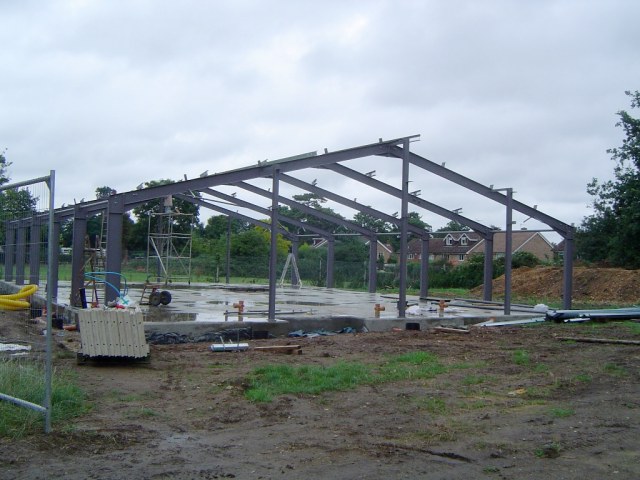

By the end of the day most of the framework is up.

6th August 2008

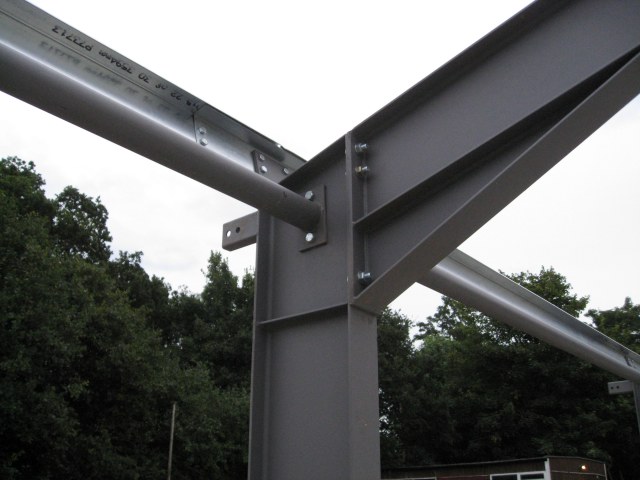

Detail of the column rafter junction.

6th August 2008

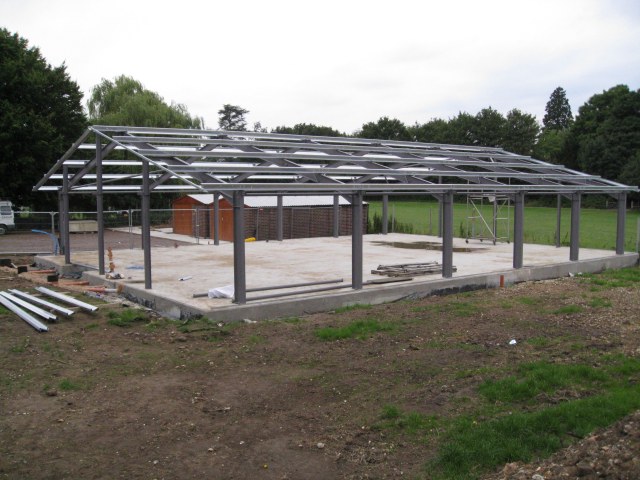

Now all the roof purlins have been installed. The next job will be to prepared the edges of the slab for the concrete panels.

8th August 2008

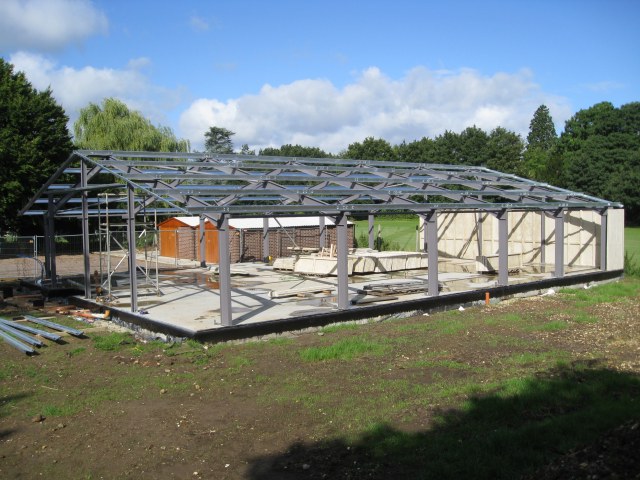

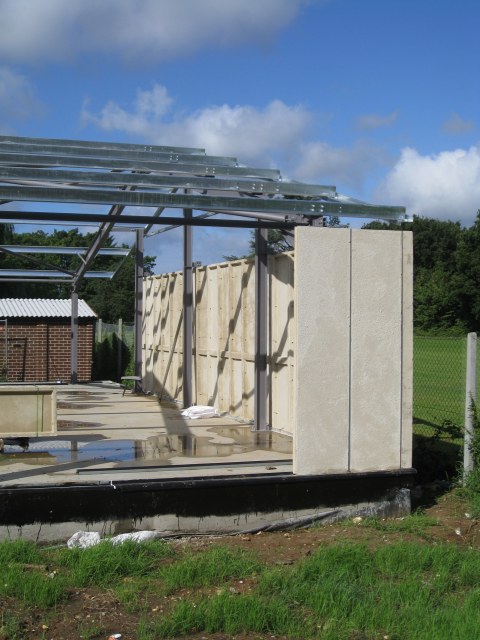

The concrete panels forming the external walls are being erected at the rear of the building.

8th August 2008

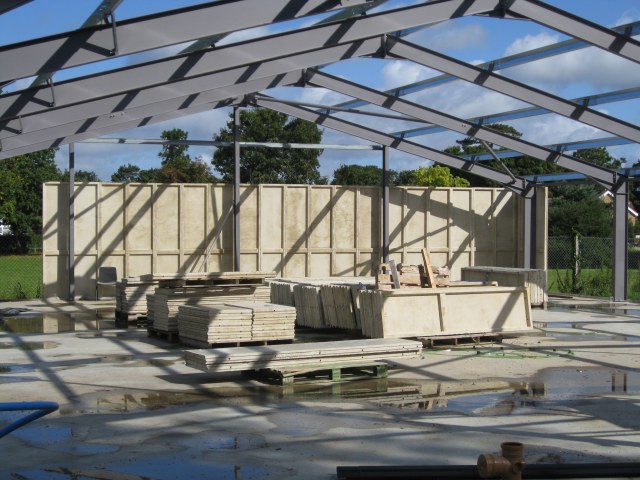

Another view of the concrete panels

8th August 2008
A closer view of the concrete panels!

8th August 2008
The foot of the concrete panels rests on a galvanised steel flashing, which is sealed to the concrete slab.

8th August 2008

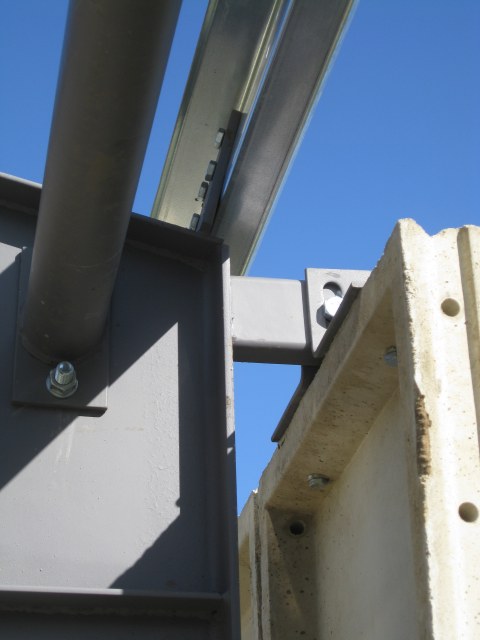

At their tops, the concrete panels are bolted to the steelwork.
